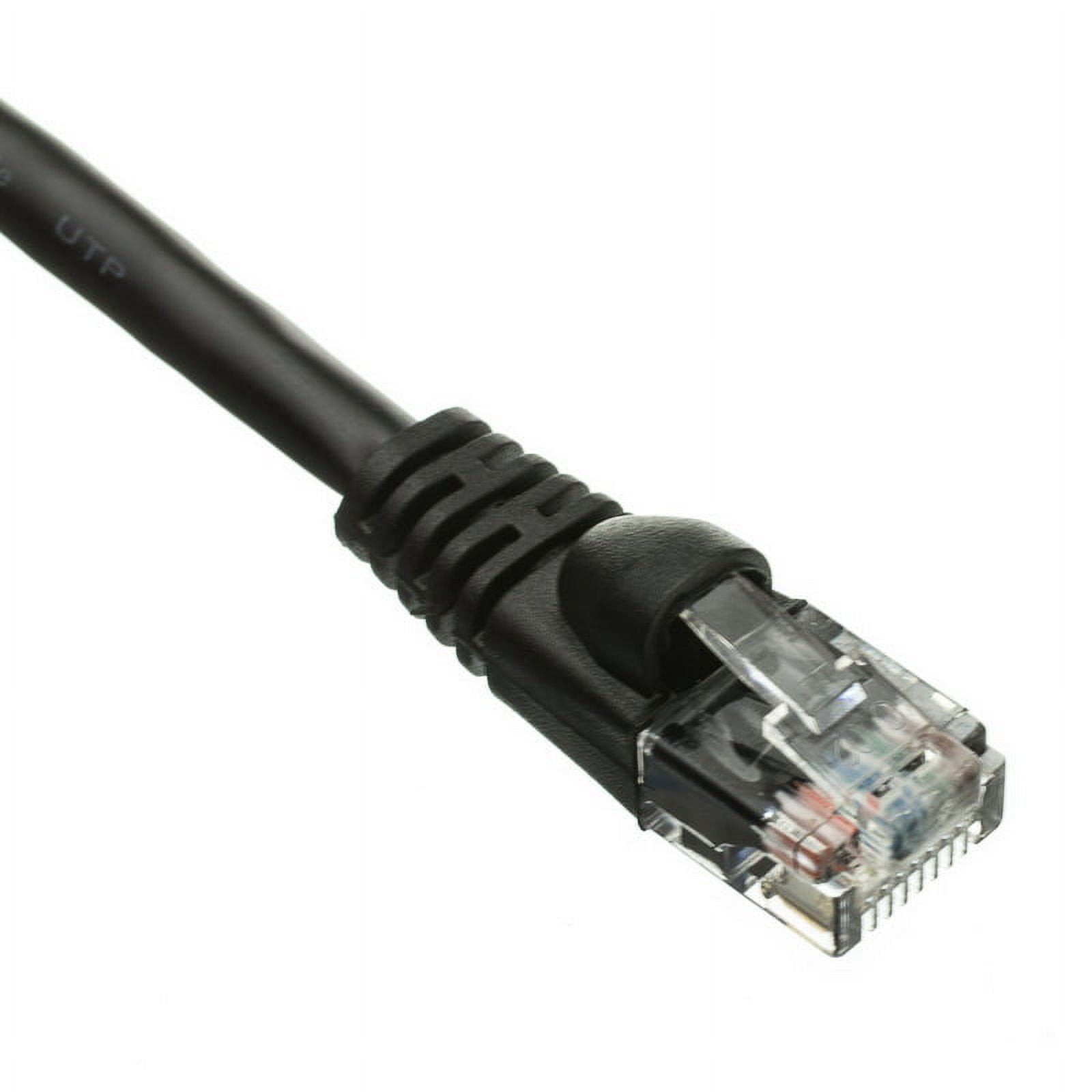

Cat6A Black Ethernet Patch Cable, Snagless - Molded Boot, 500 Mhz, 25 Foot

Cat6A Black Ethernet Patch Cable, Snagless - Molded Boot, 500 Mhz, 25 Foot 25 foot Cat6a Black Ethernet Patch Cable, Snagless/Molded Boot, 500 MHz. Cat6a Ethernet cables of the 25 foot length have a variety of uses. These cables will provide a greater reach for those situations that require more serious distances. These Ethernet Cables are great for the home office or any other environment. Cat6a was developed to achieve maximum distance of 90 meters for full 10-Gigabit network speeds. This robust spec will afford you the extra headroom across your network that Cat6 can not. The 500 Mhz performance is double that of Category 6 and five times the bandwidth capacity of Category 5e. The extra performance is ideal for Power over Ethernet (PoE) and Voice Over Internet Protocol (VoIP) applications where data loss is audibly and visually seen and heard. The latest draft declares a new measurement for Power-Sum Alien Crosstalk to ensure neighboring pairs do not cause disturbance to the other cables. The cable center isolator maintains strict pair separation optimizing NEXT performance. Our Cat6a patch cables are complete end-to-end solution and are tested for compliance with all EIA/TIA-568-C Category 6 specifications. This particular cable is a black UTP (Unshielded Twisted Pair) patch cable with molded boots (snagless installation) and extra protection for the RJ45 connector and clip. Cat6a cable includes a spline and ribbing to help ensure separation between the pairs which limits cross talk. The connectors are wired to the T568B standard. The individual conductors are 24 AWG (American wire gauge) stranded pure copper. Cat6a patch cables are stranded to improve flexibility. Pure copper conductors provide the best signal possible. The RJ45 plug features gold connectors to prevent corrosion thus ensuring a longer cable life.<li>The RJ45 plug features gold connectors to prevent corrosion thus ensuring a longer cable life.</li><li>The individual conductors are 24 AWG (American wire gauge) stranded pure copper. </li><li>End 1: CAT6a Male Plug. End 2: CAT6a Male Plug. Length: 25 feet.</li><li>Color: Black. Wire: 24 AWG. Warranty: Lifetime.</li><li>Weight: 1.00 lbs.</li><b>Shipping Details:</b>

• 10 Gigabit Cat6a Performance: Designed to support 10 Gigabit Ethernet applications with bandwidth rated up to 500 MHz.
• Enhanced Pair Separation Design: Integrated spline and ribbing help maintain conductor separation within the cable structure.
• Stranded 24 AWG Pure Copper Conductors: Flexible stranded conductor construction supports patching in equipment racks and network cabinets.
• Snagless Connector Protection: RJ45 connectors include protective boots to help reduce stress on connector clips during installation.
• Standards-Compliant Termination: Connectors wired to the T568B configuration and tested for compliance with ANSI/TIA-568.2-D Category 6 specifications.
